High Quality 4CH 3G 4g wifi gps Vehicle 720P AHD Mobile DVR 4 channel SD card mdvr

  • 5 - 99 Sets
    $145.00
  • >=100 Sets
    $134.80
Type:
DVR
Channels:
4
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LUHOO VISION
Model Number:
ST504AL
Video Compression Format:
H.264
Product name:
4CH Single SD Card MDVR
Type:
AHD Mobile DVR
Resolution:
1080P/720P
Video input:
4 Channels
Video Compression:
H. 264
Storage:
256GB SD Card
Video Output:
1ch VGA
Video Standard:
PAL NTSC
Certificate:
CE FCC
Warranty:
1 Year
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Professional paper box or offering customize packaging.
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Video Description
Product Description
Item
Device parameter
Performance
System
Main processor
Hi3520DV200

Operating system
Hi3520DV200
Operating language
Chinese/English
Operating interface
GUI, support mouse
Password security
GUI, support mouse
Audio & Video
Video standard
PAL/NTSC
Video compression
H.264
Image resolution
720P /960H/D1/CIF
Playback quality
720P /960H/D1/CIF
Compound mode
4ch 720P/4ch 960H/2ch 720P+2ch 960H
Decoding ability
1ch 720P real time
Recording quality
Class 1-6 optional
Image display
Single/QUAD display optional
Audio Compression
G.726
Audio recording
Audio & Video synchronized recording
Firmware upgrading
Upgrading mode
Manual/Automatical/Remote/Emergency Recovery
Upgrading method
Manual/Automatical/Remote/Emergency Recovery
Interface
AV input
4ch aviation interface
AV output
1ch VGA video output, 1ch aviation AV output
Alarm input
4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger)
HDD/SSD
1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card
1 SDXC High speed card (up to 256GB)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 LVTTL Level
LED Indication
PWR/RUN
Disk lock
1
Debug port
1
Function extention
GPS/BD
Support detecting antenna Plug in/Unplug/Short circuit
3G/4G
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD L
WIFI
802.11b/g/n, 2.4GHz
Others
Power input
10~36V DC
Power output
5V 300mA
Power consumption
Standby 3mA Maximum consumption 18W @12V 1.5A @24V 0.75A
Working temperature
-20 --- 70℃
Storage
720P 1G/h/channel; 960P 750M/h/channel
Dimension
162mm*153mm*52mm
Truck MDVR 4 Channel AHD SD HDD Vehicle 4CH Mobile DVR Features:
Ÿ Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity
Ÿ 4CH AV Inputs with AHD 720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output
Ÿ 4CH local recording with 720P resolution in real time
Power:
Ÿ Professional In-Vehicle power design, 10-36V DC Wide Voltage Range
Ÿ Multi protection circuits like under-voltage, short, reversed plug-in
Ÿ Smart power management system, shutdown under low voltage, low consumption
Data Storage:
Ÿ Special file management system to encrypt and protect the data
Ÿ Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service
life of the hard drive
Ÿ Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
Ÿ Support 2.5 inch HDD/SSD, maximum 2TB
Ÿ Support SD card storage, maximum 256GB
Transmission Interface:
Ÿ Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
Ÿ Support GPS/BD optional, high sensitivity, fast positioning
Ÿ Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
Related Products
Packing&Shipping
All of our goods will be wrapped into a Professional Color Box or Neutral Packaging, Do As you wish. we will wrap the well to make
sure you would receive the perfect products.
1.EXPRESS: around 5-7 working days to arrive.
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive
.
Company Introduction
SHENZHEN SUNTA TECHNOLOGY CO. LTD: PROFESSIONAL MANUFACTURER OF 2CH 4CH 8CH MOBILE CAR DVR,CAR BLACK BOX ETC. VEHICLE SECURITY AND
SURVEILLANCE PRODUCTS.


*COMPANY INTRODUCTION

Shenzhen Sunta Technology Co., Ltd. (hereinafter referred to as SUNTA) is a high-tech security company specializing in R&D,
production, sales and service of Mobile DVR/MDVR,CAR DVR, car monitor, car driving recorder, car/vehicle cameras and Color
multiplexer and screen segmentation systems. Has registered its own "LUHOOVISION" brand.

All key components of the product are imported from Japan, Europe , the United States and Famous Brands in China, which ensures
the stable and reliable quality of the whole machine. All products are produced in strict accordance with the ISO9001 quality
certification system, and passed CE, FCC certification and national security alarm system quality supervision and inspection
Certification. Our customers come from more than 40 countries and regions, including the USA, UK, Germany, France, Australia,
Japan, Latin American and etc.

*Our products

720/1080P MDVR
Equipped with high-definition audio and video input and output, real-time synchronous recording and SSD hard disk storage;
Waterproof function can protect video data security; It has G-sensor, over speed, motion detection and other trigger alarm forms.

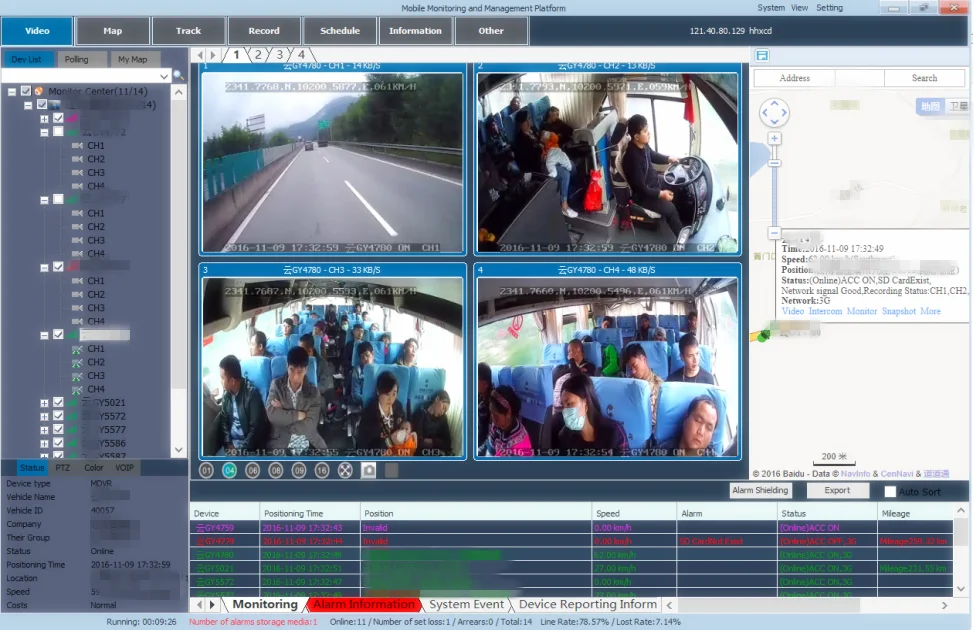

The alarm video can be uploaded to the server through 3G/4G/WiFi network. Users can perform remote real-time preview and download
the video on a PC, phone and an iPad. GPS real-time positioning and history track query, vehicle location and running speed data
are also available. Besides, the platform server supports distributed deployment, unlimited expansion of DVR access, and it also
has remote management to schedule of all vehicles in the fleet.

Vehicle Camera
We produce and design various models of Vehicle cameras and H.264 / H.265 Digital Video Recorder (DVR) with capabilities of
capturing 1 Megapixel (720p), and 2 Megapixel (1080P) resolutions. With various camera form factors (Indoor Dome camera, Outdoor
Dome Mobile Camera, Rear View Camera , Mini conch dome vehicle camera, PTZ camera and Square Camera).

360° bird-view panoramic driving system
Equipped with 720P wide-angle camera (4CH), the captured video performs image fusion automatically, and it debugs automatically to
splice into a car top view, achieving 360° no-dead-angle monitoring. It can also be used in conjunction with the radar system to
detect obstacles around the vehicle (optional). When the vehicle passes through complex roads or parking, it will promptly remind
the driver to pay attention to the obstacle through the audible alarm. It can reduce the occurrence of accidents such as smashing,
collision, and subsidence.

7/9/10.1 Inch TFT LCD Waterproof Car Monitor System
Standalone car camera system with 7/9/10.1 inch high resolution 1024*600 digital TFT LCD car quad monitor connecting to Auto car
camera for vehicle reversing system with screen splitter function. 100% original ONE-HAND screen support multiple languages.

HD rear view system
With high color reproduction and anti-interference ability, the resolution of the system can reach to 1024 x 600.The HD input
marks the leap forward from "visible" to "Crystal" and also breaks through monitor image quality of rear view system.

Car QUAD System
Various types of blind area assistant systems provide customers with visual angle of blind area image to ensure safe driving. This
system is based on the driver's operating habits, manual and automatic analysis and control of the road conditions shown in the
video.

*Our Customers

Our products can be widely used in ships, trucks, buses, school buses, ambulances, garbage trucks, fire trucks, agricultural
vehicles, cement mixers, excavators, forklifts, road sweepers, cranes and other vehicles and large machinery equipment. With the
development by the time, SUNTA has established solid cooperation with many excellent enterprises from various fields. The filed
range covers consumer electronics, industry, agriculture, manufacturing, public transportation and so on ...

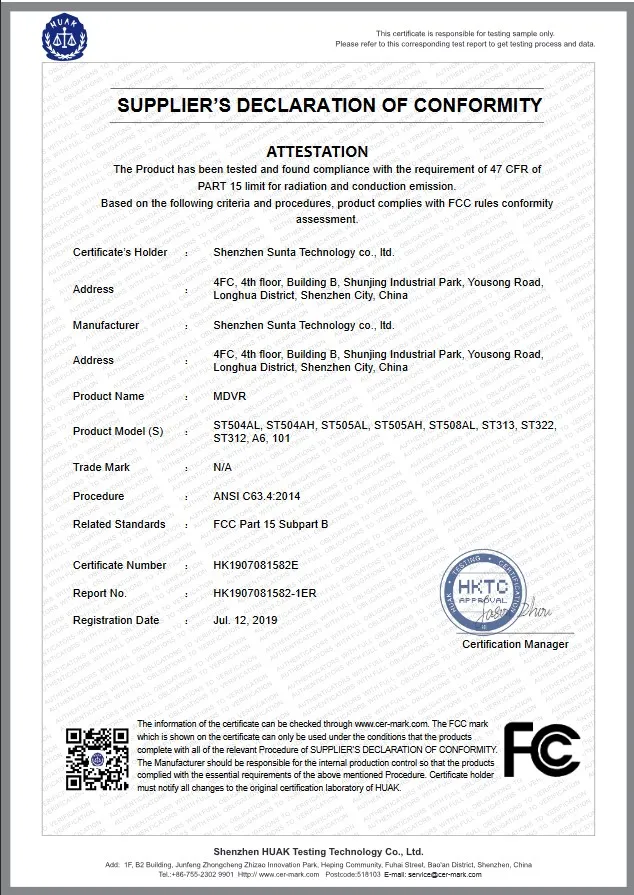

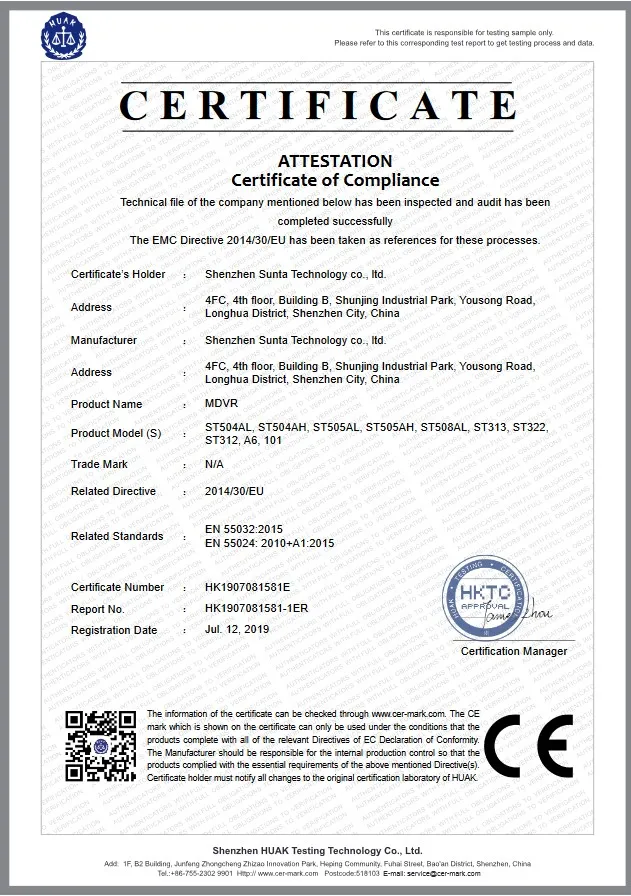

Certification
Our Service
Warranty:
All of our products have 15 months warranty of normal use. During this period, if the product has any quality problem ( not caused
by humanbeing), we will repair it for free. Moreover, we offer a lifetime maintenance service .

Customize Service:
We have professional R&D team, if you have special requirements for the product, such as function, appearance etc. some
professional requirements,pls feel free to contact us, we will offer you the most professional OEM&ODM service.

24/7 Online Service:
Any questions can contact us at any time,we will reply to you asap .

Fast Delivery Service:
Normally,we have the products in stock. Therefore,we can arrange delivery within 1 working day after receiving your payment. But
for bulk order or some special festival, the shipment may takes a little longer.
FAQ
1. What is your MOQ:
Usually, Our MOQ is 1pc or one set, welcome to order sample to test our quality and service.
2. How to get a sample?
1) choose the item you need and contact our sales for price, shipping and specifications details; 2) if you are agree with our
offer, please send us your contact information to make Proforma Invoice; 3) after payment done, please send us bank copy or the
payment control number, so that we can check the money and arrange sample for you as soon as possible; 4) The parcel will be
shipped out within 24 hours after we collecting the money,tracking number will be sent to you after we ship
out your sample.
3. Do you accept OEM/ODM ?
OEM/ODM is highly welcomed. and if you want OEM/ODM or customized service,pls feel free to contact our sales as below contact
information.
