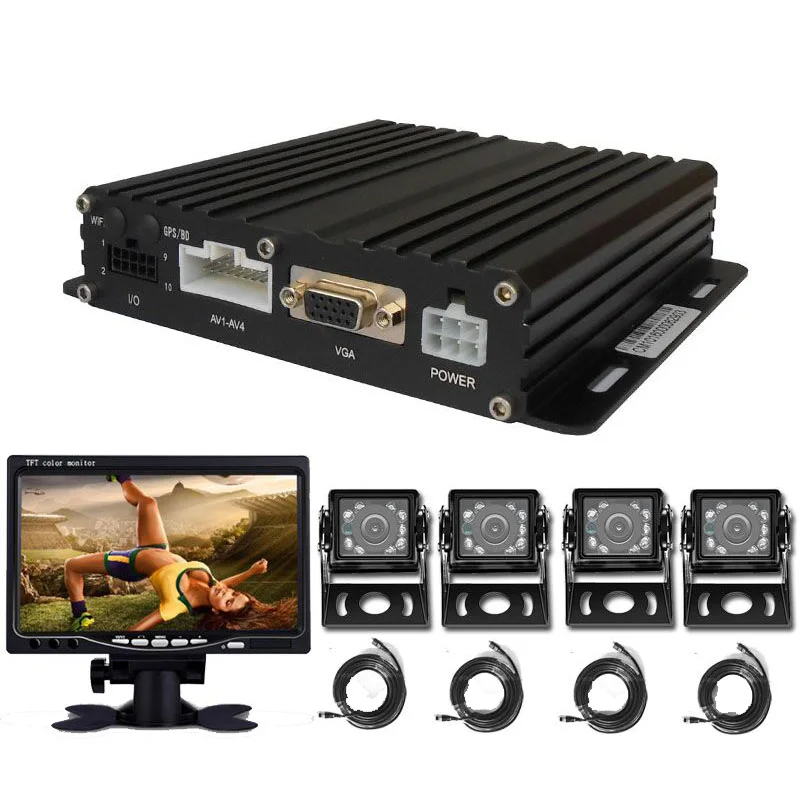

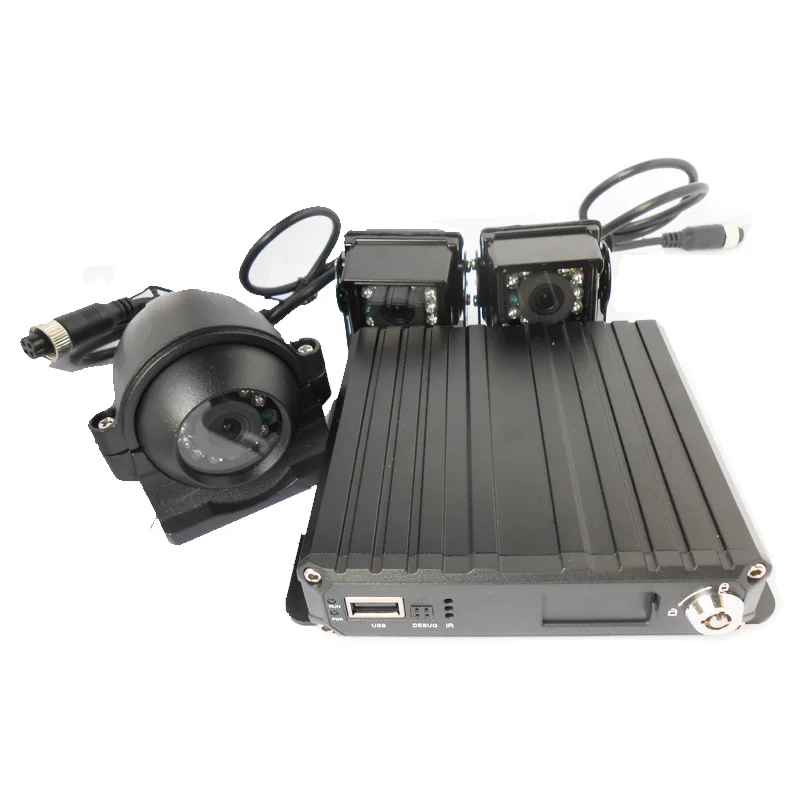

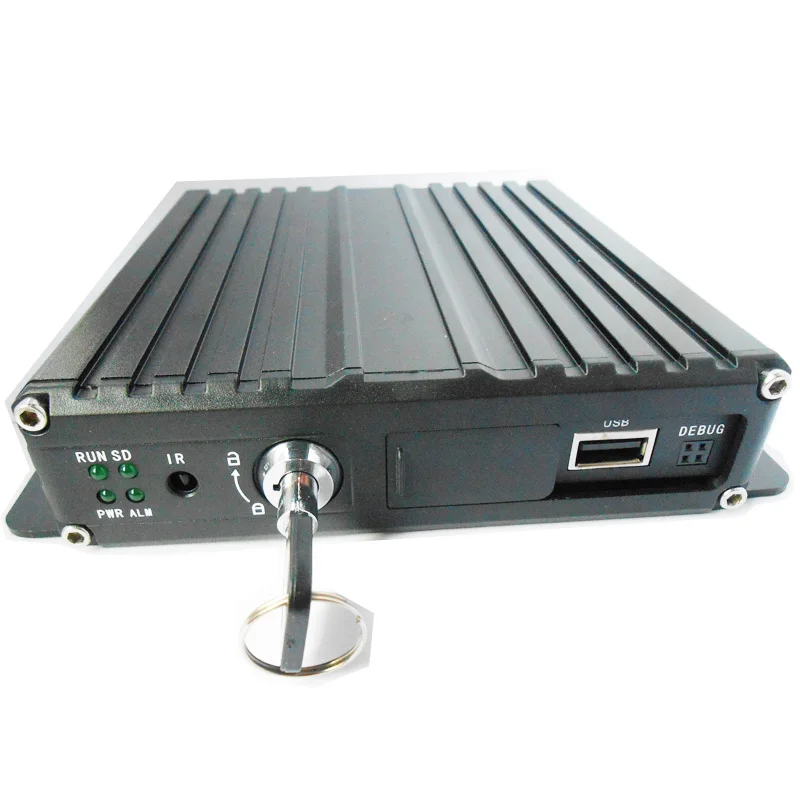

4CH 720P/1080P Mobile DVR Kit Support 3G 4G WiFi GPS MDVR with Car/Bus/Truck/Vehicles Camera Recorder

  • 10 - 99 Sets
  • >=100 Sets
Lead Time:
Quantity(Sets) 1 - 50 51 - 100 >100
Est. Time(days) 5 10 Negotiable
Report Suspicious Activity
Quick Details
Video Recorder, AHD 720P 4ch MDVR
Screen Type:
Screen Size:
Waterproof, NIGHT VISION
12 Months
Place of Origin:
Brand Name:
Luhoo vision
Model Number:
ST- 504AL
Product name:
4CH mobile dvr kit with 3g 4g gps wifi
Cycle Recording
Video resolution:
Video format:
Optional Function:
GPS, 3G/4G, Wifi
Power Supply:
9-36V DC
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Professional paper box or offering customized packing .

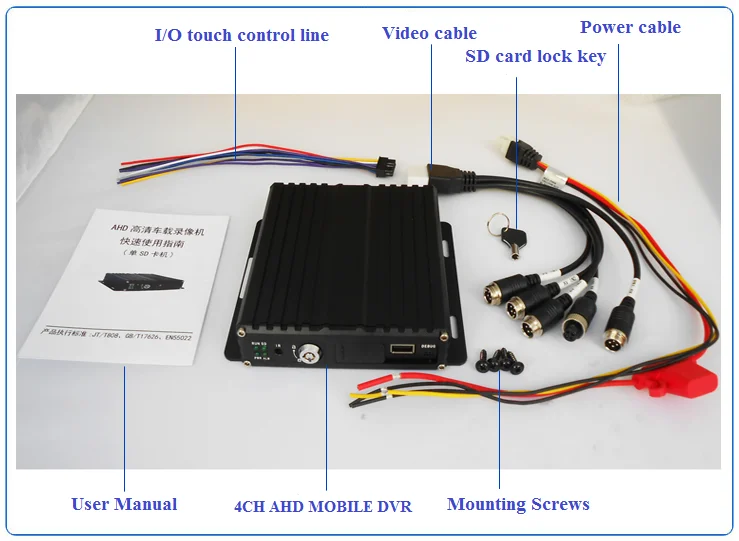

Picture Example:
Lead Time :
Quantity(Sets) 1 - 50 51 - 100 >100
Est. Time(days) 5 10 To be negotiated
Video Description
Product Description
Video Compression
Overlays information such as date time and vehicle ID
Graphical User

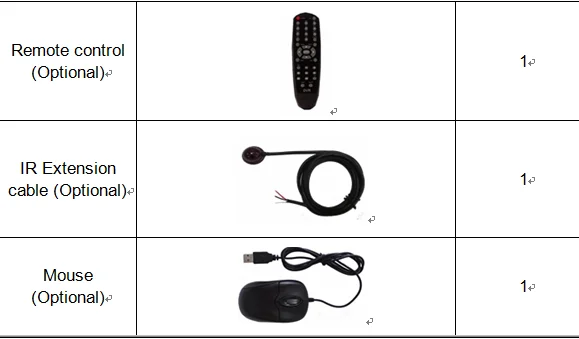

Setup system parameters with the remote control.
Video Record System
Video Input
4CH 720P AHD input/SD input/mixed video input, aviation connector, 1.0Vp-p, 75Ω
Video Output
1CH CVBS+1CH VGA output, 1.0Vp-p, 75Ω,Aviation, Support 1CH Full Screen,4CH Screen
Support 1 channel and 4 channels preview.,Support  Manual/Alarm Trigger full screen preview
720P/D1/HD1/CIF, MAX:4 channels 720P
Video Quality
0-7 levels, 0 is the highest level.
Video Standard
PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
720P: 4Mbps-6Mbps, multi level video quality optional
Record Mode
The default setting is auto recording after power on.

Timed recording, alarm trigger recording and manual recording are supported.
Audio Input
4CH, Aviation Plug
Audio Output
1CH, Aviation Plug
1CH, Aviation Plug
Alarm Input
4Ch Alarm Input, kinds of alarm linkage support
Alarm Output
1CH Alarm Output
Communication interface
1CH RS232 or 1CH RS485 for optional
Support Built GPS/BD Module, built in G-sensor,  can repaly and analyse vehicle driven route.
Wireless transmission
Suppport Built-in 3G/4G wireless transmission function, WCDMA, CDMA2000, TDD-LTE, FDD-LTE....
Motion Detection
Support motion detection alarm. (Can set the video recording duration time after alarm on platform.)
Support G-sensor
Dual SD Card,each max 128GB SD Card loop recording
Support SD Card remote updating
File Format
File System
Special FAT32 File System
Video Playback
Video Search
Search By Record Time/Record Type etc
Max support 4CH Replay /Stop/Fast/Slow at same time
Support forward and backward play at the speed of: x 2,x4,x8,x16.
Voltage & Power
Power Management
Wide Voltage/Support Timed/Delay off
Voltage Input
DC: +9V ~ +36V
Voltage Output
+12V 2.5A,+5V 2.5A
Power Consumption
Normal Working <14W , Stand-by status < 0.5W
Working Environment
User/Admin 2 Level Different Password
4Ch Mobile AHD Car Dvr With Gps Features:
1. Built-in high-performance Hisilicon image processor chip: H.264 encoding, high compression ratio, high quality image;
2. Supports 4ch AHD 720p/analog video/audio input, 1ch video & audio sync output, 1ch VGA output;
3.Supports 4 channels 720P (total 120 fps)/720P /D1/CIF real time recording.;
4.With 10-36 V wide voltage design, for all kinds of automobiles;
5. Under voltage, short circuit, reverse polarity protection, suitable for a variety of vehicles;
6. Automatic identification power supply type; automatic shutdown with low battery voltage; very low power consumption when ignition off;
7. Using special file management mechanism to encrypt data for the effective protection of data security;
8. Using particular error scan technology of the hard disk, it can ensure the continuity of recording, and also prolong the hard disk life;
9. Built-in super capacitor for power off protection to avoid data loss;
10. Supports time-lapse recording; delay time can setup from 1 to 244 minutes;
11. Supports 1*256G SD card storage;
12. Supports GPS: high sensitivity and fast positioning;
13. Supports WIFI transmit and download: 802.11b/g/n, 2.4GHz;
14. Built-in 3G/4G module, supports LTE/ HSUPA /HSDPA /WCDMA /EVDO.
All of our goods will be wrapped into a Professional Color Box or Neutral Packaging, Do As you wish. we will wrap the well to make sure you would receive the perfect products.
1.EXPRESS: around 5-7 working days to arrive.
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive.
Company Introduction

Shenzhen Sunta Technology Co. LTD: Professional manufacturer of 2CH 4CH 8CH Mobile Car DVR,Car black box etc. vehicle security and surveillance products.

  • Company introduction

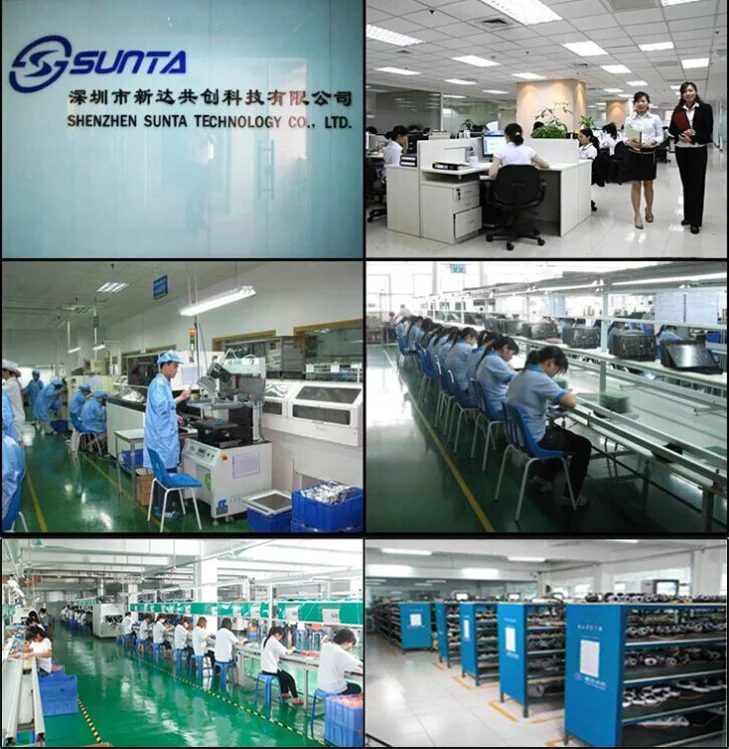

Shenzhen Sunta Technology Co., Ltd. (hereinafter referred to as SUNTA) is a high-tech security company specializing in R&D, production, sales and service of Mobile DVR/MDVR,CAR DVR, car monitor, car driving recorder, car/vehicle cameras and Color multiplexer and screen segmentation systems. Has registered its own "LUHOOVISION" brand.


All key components of the product are imported from Japan, Europe , the United States and Famous Brands in China, which ensures the stable and reliable quality of the whole machine. All products are produced in strict accordance with the ISO9001 quality certification system, and passed CE, FCC certification and national security alarm system quality supervision and inspection Certification. Our customers come from more than 40 countries and regions, including the USA, UK, Germany, France, Australia, Japan, Latin American and etc.


  • Our products


720/1080P MDVR

Equipped with high-definition audio and video input and output, real-time synchronous recording and SSD hard disk storage; Waterproof function can protect video data security; It has G-sensor, over speed, motion detection and other trigger alarm forms. The alarm video can be uploaded to the server through 3G/4G/WiFi network. Users can perform remote real-time preview and download the video on a PC, phone and an iPad. GPS real-time positioning and history track query, vehicle location and running speed data are also available. Besides, the platform server supports distributed deployment, unlimited expansion of DVR access, and it also has remote management to schedule of all vehicles in the fleet.


Vehicle Camera

We produce and design various models of Vehicle cameras and H.264 / H.265 Digital Video Recorder (DVR) with capabilities of capturing 1 Megapixel (720p), and 2 Megapixel (1080P) resolutions. With various camera form factors (Indoor Dome camera, Outdoor Dome Mobile Camera, Rear View Camera , Mini conch dome vehicle camera, PTZ camera and Square Camera).


360° bird-view panoramic driving system

Equipped with 720P wide-angle camera (4CH), the captured video performs image fusion automatically, and it debugs automatically to splice into a car top view, achieving 360° no-dead-angle monitoring.  It can also be used in conjunction with the radar system to detect obstacles around the vehicle (optional). When the vehicle passes through complex roads or parking, it will promptly remind the driver to pay attention to the obstacle through the audible alarm. It can reduce the occurrence of accidents such as smashing, collision, and subsidence.


7/9/10.1 Inch TFT LCD Waterproof Car Monitor System

Standalone car camera system with 7/9/10.1 inch high resolution 1024*600 digital TFT LCD car quad monitor connecting to Auto car camera for vehicle reversing system with screen splitter function. 100% original ONE-HAND screen support multiple languages.


HD rear view system

With high color reproduction and anti-interference ability, the resolution of the system can reach to 1024 x 600.The HD input marks the leap forward from "visible" to "Crystal" and also breaks through monitor image quality of rear view system.


Car QUAD System

Various types of blind area assistant systems provide customers with visual angle of blind area image to ensure safe driving. This system is based on the driver's operating habits, manual and automatic analysis and control of the road conditions shown in the video.


  • Our Customers


Our products can be widely used in ships, trucks, buses, school buses, ambulances, garbage trucks, fire trucks, agricultural vehicles, cement mixers, excavators, forklifts, road sweepers, cranes and other vehicles and large machinery equipment. With the development by the time, SUNTA has established solid cooperation with many excellent enterprises from various fields. The filed range covers consumer electronics, industry, agriculture, manufacturing, public transportation and so on ...

Our Service
All of our products have 15 months warranty of normal use. During this period, if the product has any quality problem ( not caused by humanbeing), we will repair it for free. Moreover, we offer a lifetime maintenance service .

Customize Service:
We have professional R&D team, if you have special requirements for the product, such as function, appearance etc. some professional requirements,pls feel free to contact us, we will offer you the most professional OEM&ODM service.

24/7 Online Service:
Any questions can contact us at any time,we will reply to you asap .

Fast Delivery Service:
Normally,we have the products in stock. Therefore,we can arrange delivery within 1 working day after receiving your payment. But for bulk order or some special festival, the shipment may takes a little longer.
1. What is your MOQ:
   Usually, Our MOQ is 1pc or one set, welcome to order sample to test our quality and service.
2. How to get a sample?
    1) choose the item you need and contact our sales for price, shipping and specifications details;
    2) if you are agree with our offer, please send us your contact information to make Proforma Invoice;
    3) after payment done, please send us bank copy or the payment control number, so that we can check the money and arrange sample for you as soon as possible;
    4) The parcel will be shipped out within 24 hours after we collecting the money,tracking number will be sent to you after we ship out your sample.
3. Do you accept OEM/ODM ?
    OEM/ODM is highly welcomed. and if you want OEM/ODM or customized service,pls feel free to contact our sales as below contact information.
